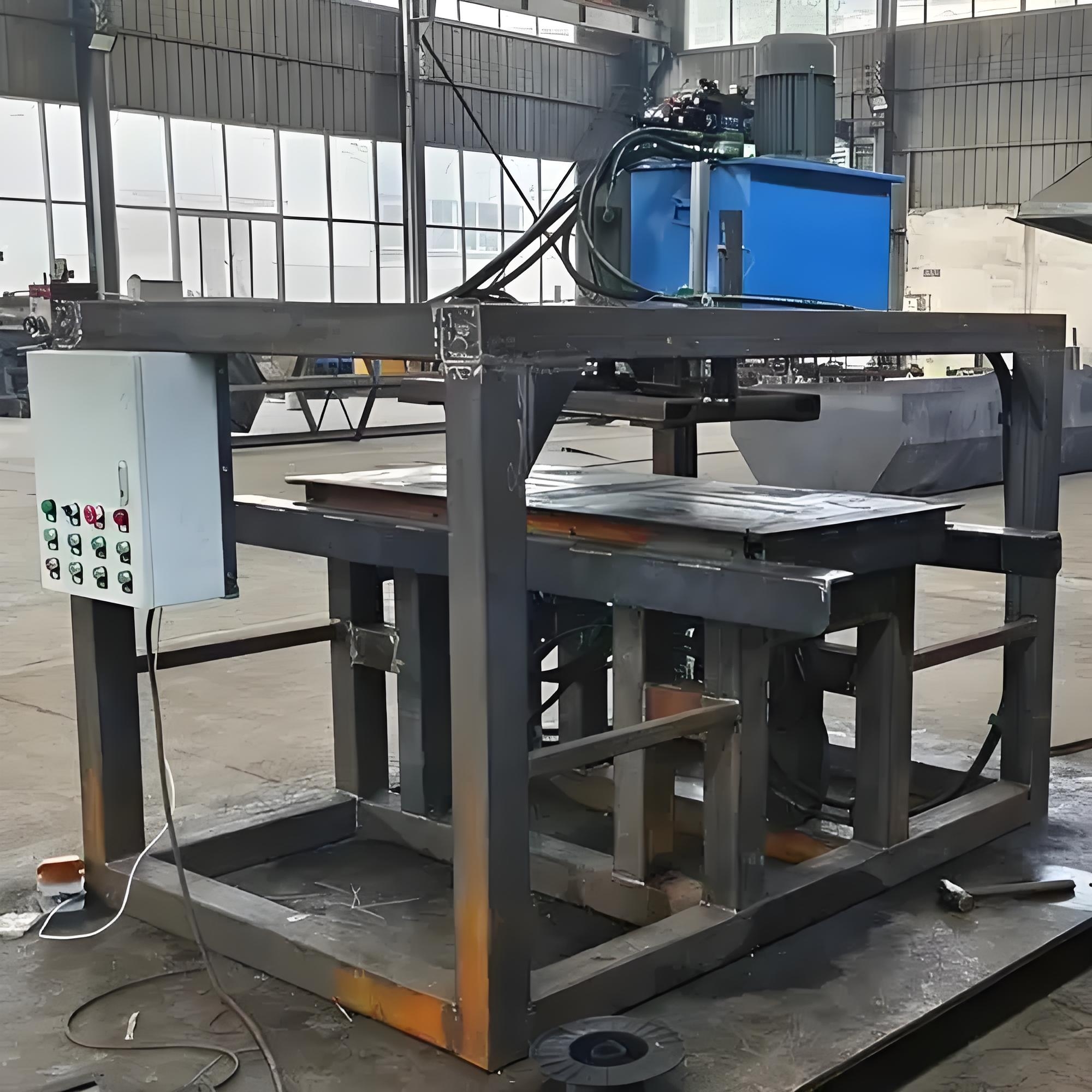

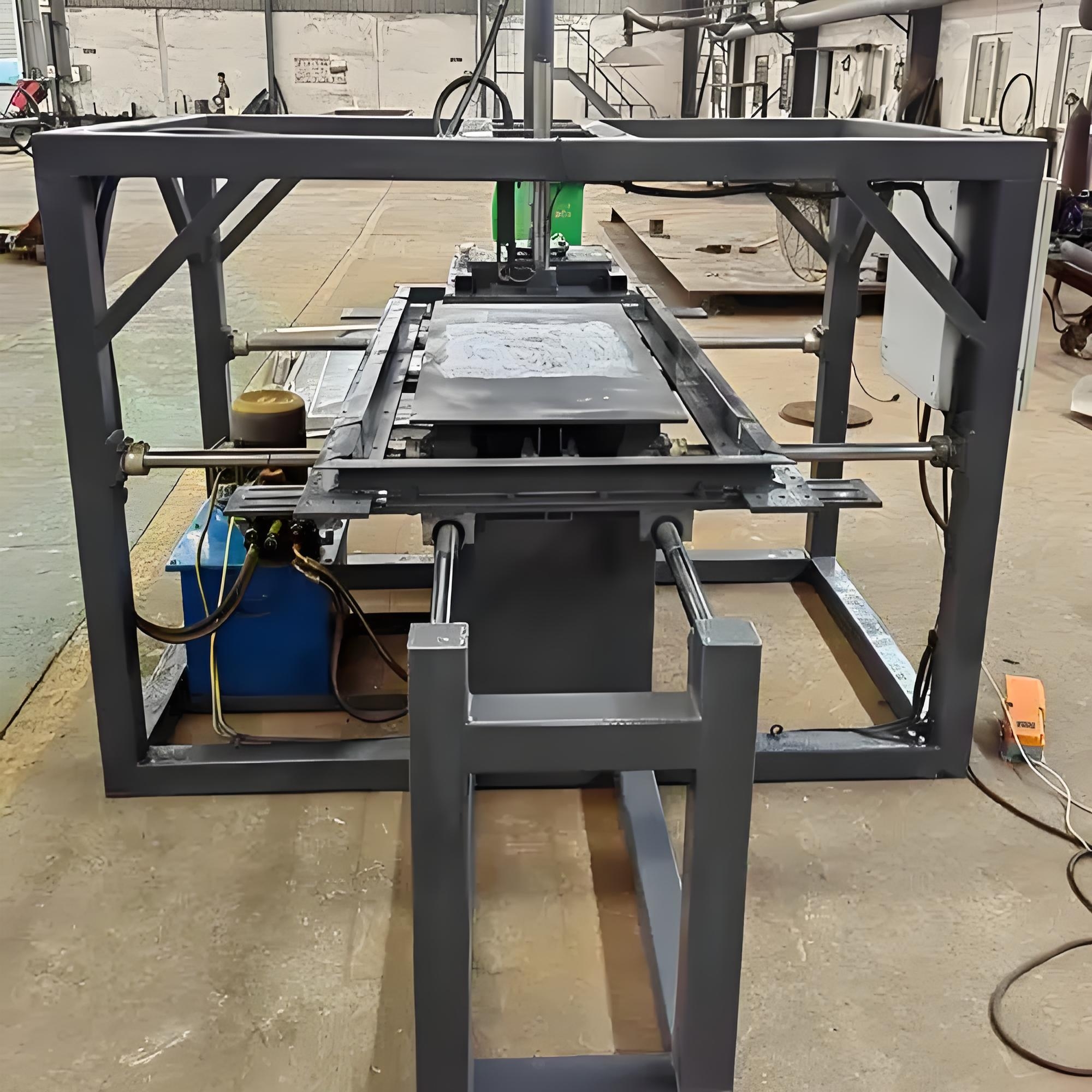

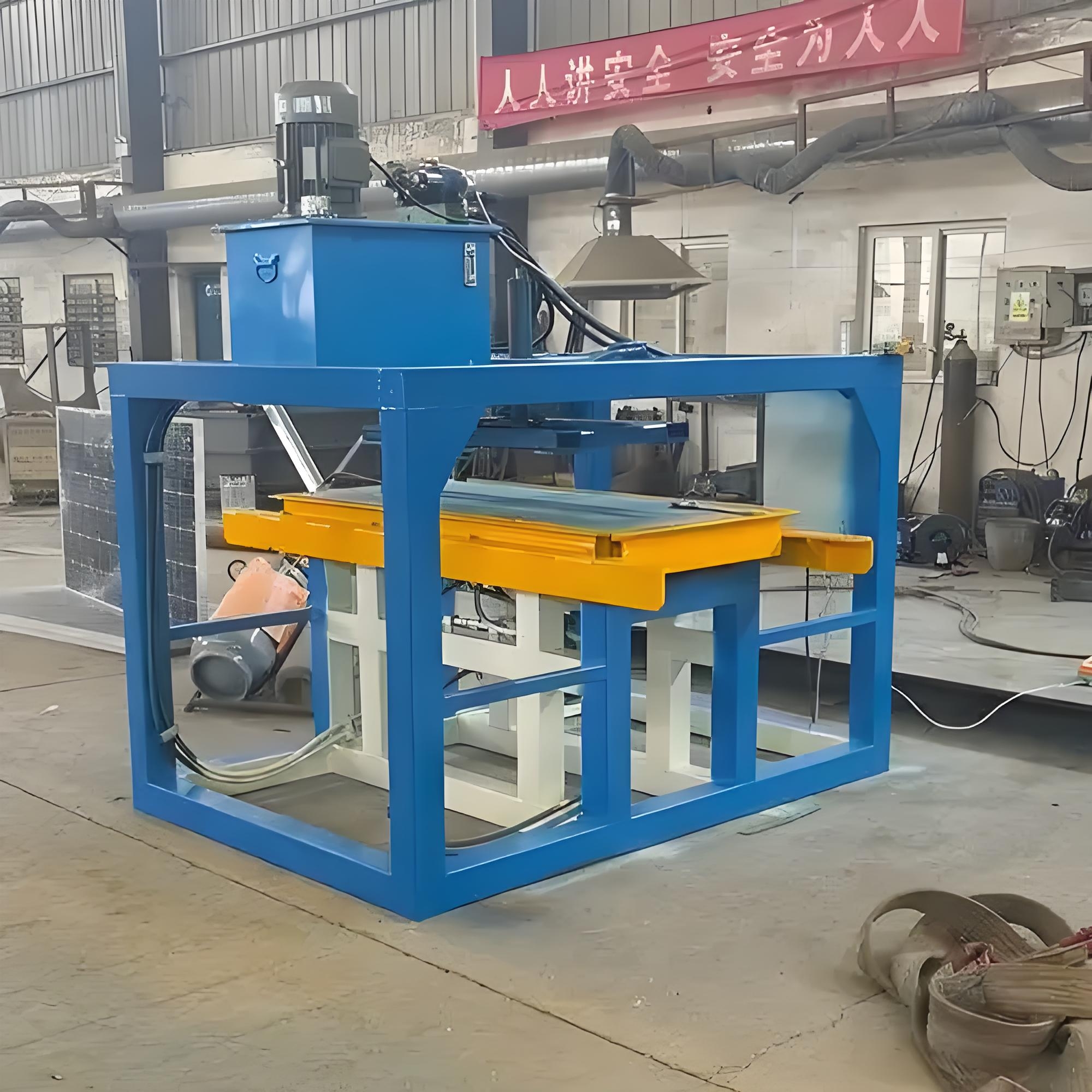

Aluminum Frame Dismantling

Model MxCj-260
Motor Prower4Kw
Hydraulic Cylinder Diamter150-200mm
Application Size

Max.1300*2400mm

Min .950*1700

Number of Hydraulic Cylinder5
Pressure Plate Method Hydraulic
Weight1000-2000kg(Based on customization
Dimension2300*2000*2200mm


The aluminum frame dismantling machine (also called aluminum profile frame disassembler or aluminum frame separator) is a dedicated device for waste aluminum frames, such as photovoltaic module aluminum frames, door and window aluminum frames, and household appliance aluminum shell frames. Its core function is to efficiently and non-destructively separate aluminum frames from non-aluminum components (glass, silica gel, plastic, steel, etc.) to achieve clean recycling and resource reuse of aluminum profiles.
