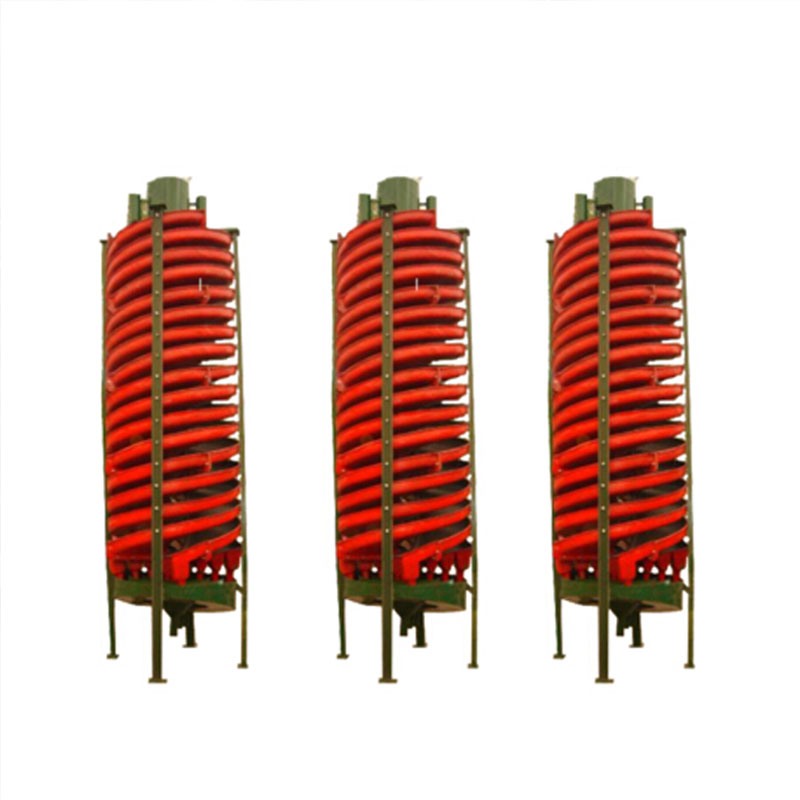

Spiral Chute Overview

The spiral separator/ spiral chute is the earliest mining machine. It has been used to classify the granularity of 0.3-0.02 millimeters fine grain like iron, tin, tungsten, tantalum-niobium, gold ore, coal mine, monazite, rutile, zircon, and other metals. The non-metallic minerals have a big enough specific gravity difference.

Spiral chutes are gravity concentrators and separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force, and other forces in the fluid medium. The spiral separator is the best equipment for mining and mineral processing, which combines the characteristics of the spiral concentrator, shaking table, and centrifugal concentrator. It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover, light moisture-proof, anti-rust.

Structure&Working Principle

Spiral Chute Structure

The main parts of a spiral chute are feeder chute, trough pillar, product collection funnel, product intercepted slot, spiral chute, tripod, etc.,
