1. Introduction​

A shaking table, also known as a vibratory table or oscillating table, is a mechanical device designed to generate controlled, periodic vibration or oscillation. Its core functionality revolves around using mechanical or electrical drives to create reciprocating or oscillating motion on a tabletop, making it a versatile tool across multiple fields. From separating mineral particles in mining to cultivating microorganisms in laboratories and testing structural resilience in construction, the shaking table’s adaptability to different operational needs has solidified its role as a critical piece of equipment. This article explores its working principles, applications in key industries, design features, and advantages.​

2. Core Working Principles​

At the heart of every shaking table lies the synergy between controlled vibration and targeted motion adjustment. The device typically consists of a tabletop (the working surface), a drive system (to generate vibration), and a control mechanism (to regulate motion parameters).​

Vibration Generation: The drive system—often powered by electric motors, hydraulic cylinders, or eccentric shafts—converts rotational or linear energy into reciprocating motion of the tabletop. For example, eccentric shafts create uneven rotational force, causing the table to shake back and forth; hydraulic drives offer smoother, more precise control over vibration amplitude.​

Motion Regulation: Key parameters such as vibration frequency (number of oscillations per minute), amplitude (maximum displacement of the table), and direction (horizontal, vertical, or angular) are adjustable. These settings are tailored to the application: high frequency and small amplitude may be used for laboratory mixing, while low frequency and large amplitude suit heavy-duty mineral separation.​

Auxiliary Mechanisms: Depending on the use case, additional components enhance functionality. For instance, mineral processing tables include water spray systems to aid particle separation, while laboratory models may have temperature-controlled enclosures for biological cultures.​

3. Applications Across Industries​

The shaking table’s design flexibility allows it to serve distinct purposes in diverse sectors. Below are its most prominent applications:​

3.1 Mineral Processing: The "Gravity Separation Workhorse"​

In mining and mineral processing, the shaking table (often called a mineral processing shaking table) is a cornerstone of gravity separation—one of the oldest and most cost-effective methods for extracting valuable minerals from ore.​

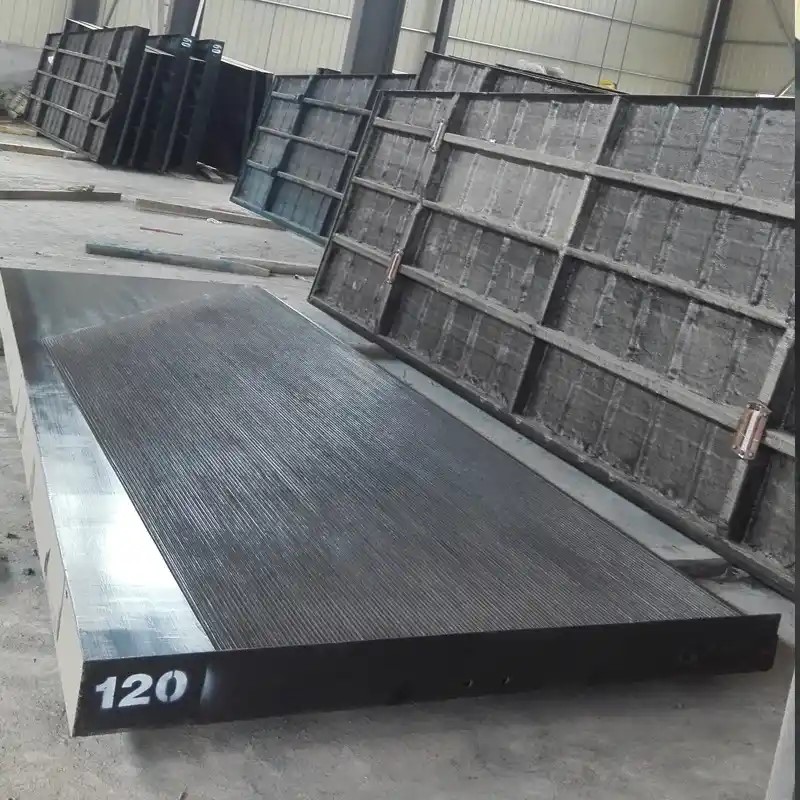

Working Mechanism: The tabletop is inclined at a slight angle (3°–8°) and covered with a wear-resistant material (e.g., rubber or fiberglass). Crushed ore, mixed with water to form a slurry, is fed onto the table’s midpoint. As the table oscillates reciprocally, three forces act on the mineral particles: gravity (pulling dense particles downward), vibration (moving particles horizontally), and water flow (washing away light particles). Dense, valuable minerals (e.g., gold, tungsten, tin) settle quickly and slide down the table’s incline into a "concentrate" collection zone, while light, unwanted gangue (e.g., quartz) is carried by water to the "tailings" zone.​

Key Uses: It excels at processing fine-grained ores (0.074–2 mm), making it ideal for recovering precious metals (gold, silver), rare metals (tungsten, molybdenum), and ferrous minerals (iron, manganese). For example, in placer gold mining, shaking tables efficiently separate gold particles from sand and gravel due to gold’s high density.​

3.2 Laboratory Research: Precision for Cultivation and Mixing​

In biological, chemical, and pharmaceutical laboratories, the shaking table (referred to as an orbital shaker or oscillating incubator) is essential for tasks requiring uniform mixing or controlled cell growth.​

Working Mechanism: Laboratory shaking tables feature smaller, more precise tabletops, often with adjustable speed (50–500 rpm) and temperature (room temperature to 60°C). The oscillation is typically orbital (circular motion) rather than reciprocating, ensuring gentle yet thorough mixing of liquids or cultures. Many models include humidity control for sensitive biological samples.​

Key Uses: It is used to cultivate microorganisms (e.g., bacteria, yeast) in liquid media, as oscillation increases oxygen transfer and nutrient distribution—critical for cell proliferation. It also aids in chemical reactions (e.g., extraction, dissolution) by ensuring uniform contact between reactants, and in sample preparation (e.g., mixing reagents for analytical testing).​

3.3 Construction and Structural Testing: Simulating Real-World Vibrations​

In civil engineering and construction, large-scale shaking tables (known as seismic shaking tables) are used to test the resilience of buildings, bridges, and infrastructure components under dynamic loads—most notably, earthquakes.​

Working Mechanism: These tables are massive (some measuring 10×10 meters or larger) and can support heavy test specimens (up to thousands of tons). Powered by hydraulic or electromagnetic drives, they generate multi-directional vibrations (horizontal, vertical, and torsional) that replicate real seismic waveforms (e.g., the 1994 Northridge earthquake or 2008 汶川 earthquake). Sensors attached to the test structure measure displacement, stress, and acceleration, helping engineers evaluate structural integrity and improve design standards.​

Key Uses: Seismic shaking tables are vital for validating earthquake-resistant designs of high-rise buildings, bridges, and nuclear power plants. They also test the performance of building materials (e.g., concrete, steel) and non-structural components (e.g., pipes, electrical systems) under vibration.​

3.4 Other Industrial Applications​

Beyond the above sectors, shaking tables find use in:​

Material Science: Testing the durability of electronic components (e.g., smartphones, automotive parts) under vibration to simulate transportation or operational stress.​

Food Processing: Separating food particles by size or density (e.g., sorting grains from chaff) or mixing dry ingredients uniformly.​

Wastewater Treatment: Enhancing the settling of solids in sludge by vibrating tanks, improving separation efficiency.​

4. Key Design Features and Advantages​

The shaking table’s widespread adoption stems from its unique design features and operational benefits:​

4.1 Customizability​

Most shaking tables are modular, allowing users to adjust critical parameters (frequency, amplitude, temperature, incline) to match specific tasks. For example, a mineral processing table can be reconfigured for tungsten ore one day and gold ore the next, while a laboratory shaker can switch from orbital to linear motion for different experiments.​

4.2 High Precision​

In applications like laboratory research and mineral separation, the ability to control vibration parameters with high accuracy ensures consistent results. For instance, a laboratory shaker can maintain a constant 200 rpm for 72 hours, critical for reproducible cell culture experiments.​

4.3 Cost-Effectiveness​

Compared to alternative technologies, shaking tables are often more economical. In mineral processing, gravity-based shaking tables consume less energy than flotation machines (which require chemicals) or magnetic separators (which rely on expensive magnets). In laboratories, they are simpler to maintain than bioreactors, reducing long-term costs.​

4.4 Versatility​

A single shaking table can be adapted to multiple tasks with minimal modifications. For example, a small industrial table can be used for both mixing paint and testing small electronic components, making it a cost-efficient choice for small businesses.​

5. Future Trends​

As technology advances, the shaking table is evolving to meet new industry demands:​

Smart Control: Integration of IoT (Internet of Things) sensors and AI algorithms allows real-time monitoring and adjustment of vibration parameters. For example, a mineral processing table can automatically adjust its oscillation frequency based on ore density data from sensors, optimizing separation efficiency.​

Eco-Friendly Designs: Manufacturers are developing low-energy models (e.g., using energy-recovery systems) and non-toxic materials to reduce environmental impact, particularly in mining and wastewater treatment.​

Miniaturization: In laboratories, smaller, portable shaking tables are being designed for field research (e.g., on-site water sample testing in remote areas).​

6. Conclusion​
