Reciprocating motion of shaking machine explained Shicheng Haoxin adhering to many years of manufacturing experience, always adhere to strict quality control, continuous product innovation and technological innovation, the implementation of international development strategy, and promote the leapfrog development of enterprises. Strive to create a brilliant and beautiful tomorrow.

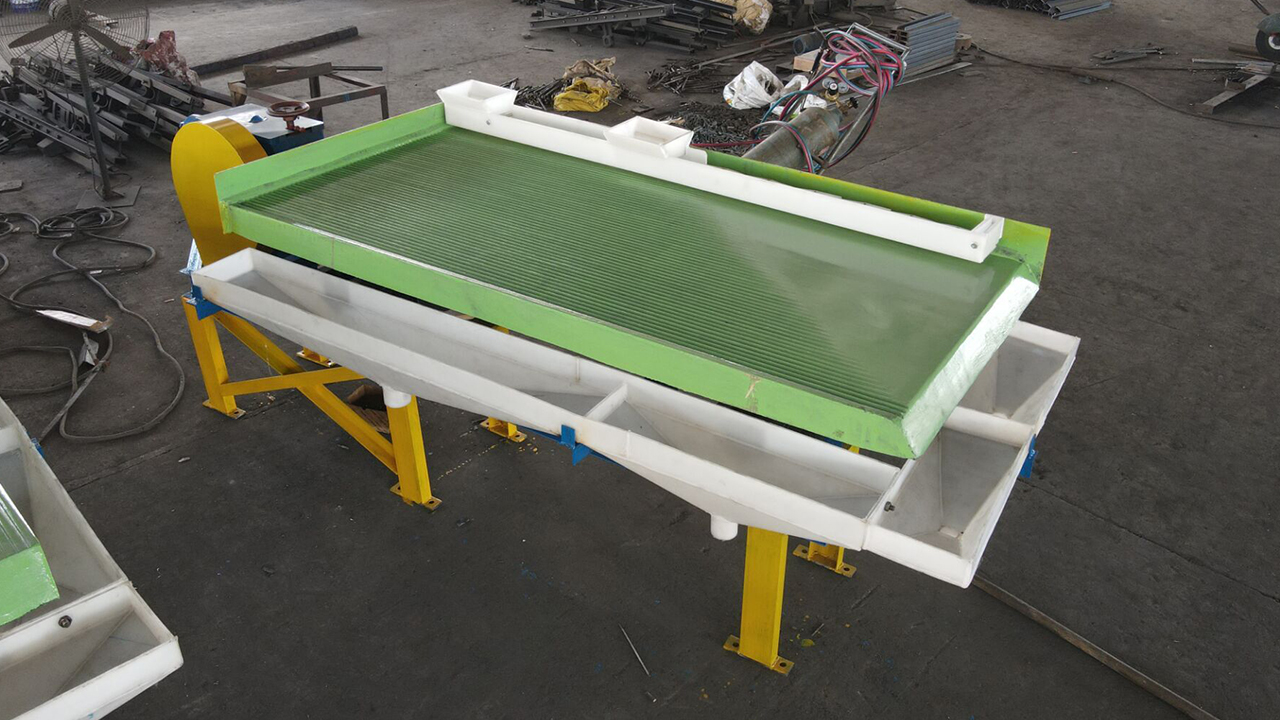

It mainly consists of 8 parts such as bed head, motor, slope adjuster, bed surface, ore tank, water tank, rifling bar and lubrication system, etc. The longitudinal direction of the bed. What is the main structure of shaking table and what is the reciprocating motion of shaking table? Reciprocating motion is realized by crank-link transmission mechanism. The electric motor drives the crankshaft through the belt transmission so that the big pulley drives the crankshaft to rotate the rocker with the upward and downward movement. When the rocker moves downward, the elbow plate pushes the rear axle and the reciprocating rod to move backward, the spring is compressed and the bed is connected to the reciprocating rod through the linkage seat, so this time also makes the bed do backward movement. When the rocker moves upward, the bed surface moves forward due to the spring's extension force.
In the shaking table technology is no say, the force is very strong, in the design is more on a higher level, sophisticated equipment, high technical performance, advanced equipment process, there are strict testing methods, excellent product quality and perfect after-sales service has won the praise of users around the country. Order hotline:, you can also call in advance for product selection and price specific advice.
